Tailscale Subnet Router Configuration

Introduction

This guide explains how to configure a Docker container running Tailscale as a subnet router, allowing remote access to internal lab networks through Tailscale’s mesh VPN.

Prerequisites

  • A running Tailscale container with host networking
  • Preapproved reusable auth key
  • Reachable internal VLANs via the host
  • Access to the Tailscale admin panel

Step 1 – Advertise internal subnets

Edit your docker-compose.yml and add --advertise-routes to TS_EXTRA_ARGS:

environment:
  - TS_AUTHKEY=tskey-xxxxxxxxxxxxxxxx
  - TS_EXTRA_ARGS=--hostname=dock1 --advertise-routes=10.0.0.0/24,10.10.0.0/24,10.20.0.0/24,10.30.0.0/24,10.40.0.0/24,10.50.0.0/24,10.60.0.0/24

You can include multiple comma-separated CIDRs.

Step 2 – Restart the container

docker-compose up -d

Step 3 – Approve routes in the admin panel

  1. Go to https://login.tailscale.com/admin/machines
  2. Locate the node dock1
  3. Click "Enable subnet routes"
  4. Make sure the route indicator turns green

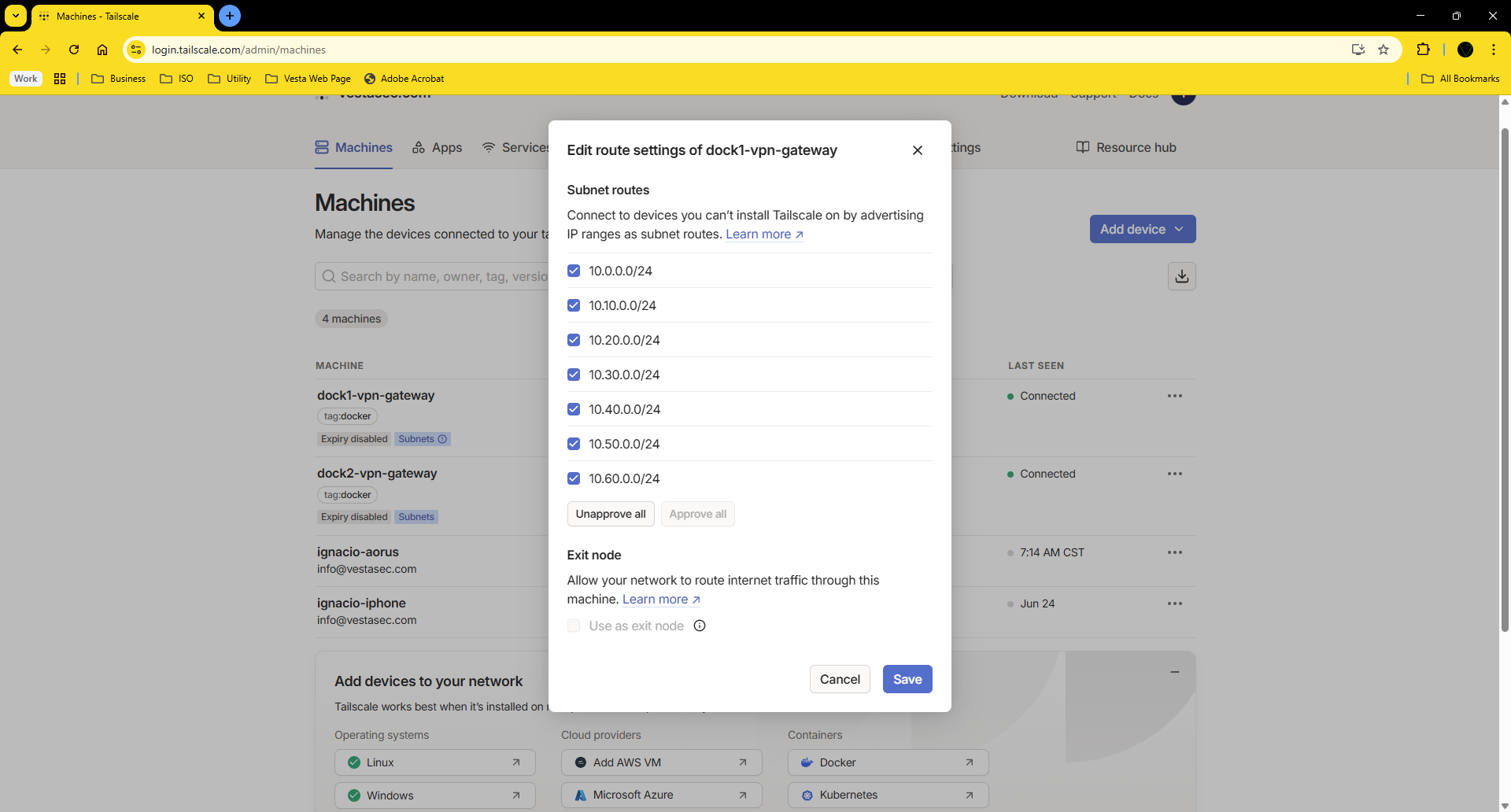

Approve subnet routes

Step 4 – Test from another node

From a remote Tailscale device:

tailscale status
ping 10.10.0.1
ssh user@10.10.0.50

If successful, you are reaching your lab's internal LAN over Tailscale.

Enable IP forwarding on the host

sysctl -w net.ipv4.ip_forward=1

Make it persistent:

echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf

VLANs and advertised subnets

Subnet Interface Suggested Purpose
10.0.0.0/24 ether1 Primary network and internet gateway
10.10.0.0/24 vlan10-mgmt Management: Proxmox, Ceph, MikroTik, monitoring
10.20.0.0/24 vlan20-svc Internal services: containers, APIs, databases
10.30.0.0/24 vlan30-stor Storage: TrueNAS, MinIO, Nextcloud
10.40.0.0/24 vlan40-bak Backups and snapshots: PBS, Veeam, Restic, Borg
10.50.0.0/24 vlan50-iot IoT devices: cameras, sensors, automation
10.60.0.0/24 vlan60-dmz Public exposure: reverse proxies, VPN entrypoints
10.70.0.0/24 vlan70-guest Guest Wi-Fi and isolated traffic

Validation and Tests

From inside the container:

tailscale status
ping 10.10.0.1

From a remote client:

ping 10.10.0.10
ssh user@10.20.0.5

Common Issues

Issue Solution
Routes not advertised Check TS_EXTRA_ARGS syntax
Cannot ping internal IPs Enable IP forwarding on host
Traffic doesn't reach VLANs Check firewall rules or bridge config on dock1
