Installation of Tailscale 1.84.3 (Docker)

Introduction

This guide details how to install and run Tailscale 1.84.3 inside a Docker container on a Linux machine. This setup allows the container to act as a VPN client and optional subnet router for internal networks.

Prerequisites

Linux system with Docker and Docker Compose installed
An active Tailscale account: https://tailscale.com
A valid auth key (tskey-...) from the admin panel
Access to /dev/net/tun and CAP_NET_ADMIN permissions
UDP port 41641 allowed for outbound traffic
Internal VLANs you want to advertise

Step 1 – Create working directory

mkdir -p ~/tailscale-docker
cd ~/tailscale-docker

Step 2 – Create docker-compose.yml

version: '3.8'

services:
  tailscale:
    container_name: tailscale
    image: tailscale/tailscale:latest
    network_mode: "host"
    cap_add:
      - NET_ADMIN
      - SYS_MODULE
    volumes:
      - tailscale-var-lib:/var/lib/tailscale
      - /dev/net/tun:/dev/net/tun
    environment:
      - TS_AUTHKEY=tskey-xxxxxxxxxxxxxxxx
      - TS_EXTRA_ARGS=--hostname=dock1 --advertise-routes=10.0.0.0/24,10.10.0.0/24,10.20.0.0/24,10.30.0.0/24,10.40.0.0/24,10.50.0.0/24,10.60.0.0/24
    restart: unless-stopped

volumes:
  tailscale-var-lib:

💡 Generate your auth key from admin/settings/authkeys. Recommended: mark it as Reusable and Preauthorized.

Step 3 – Start the container

docker-compose up -d

This will pull the image and run the container with host networking and routing enabled.

Step 4 – Check container status

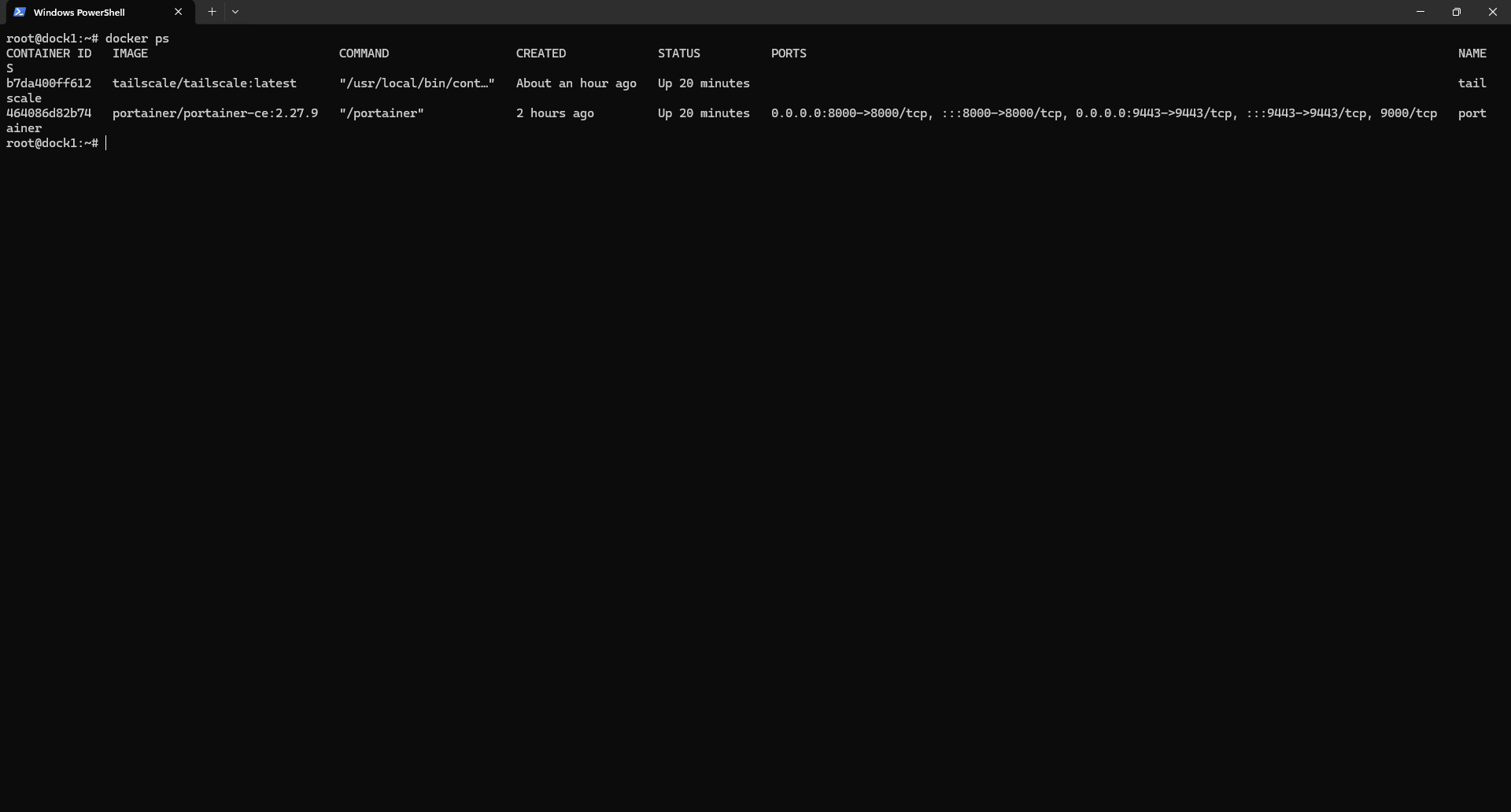

docker ps
![Container running](../assets/tailscale-docker-ps.png)
docker logs -f tailscale

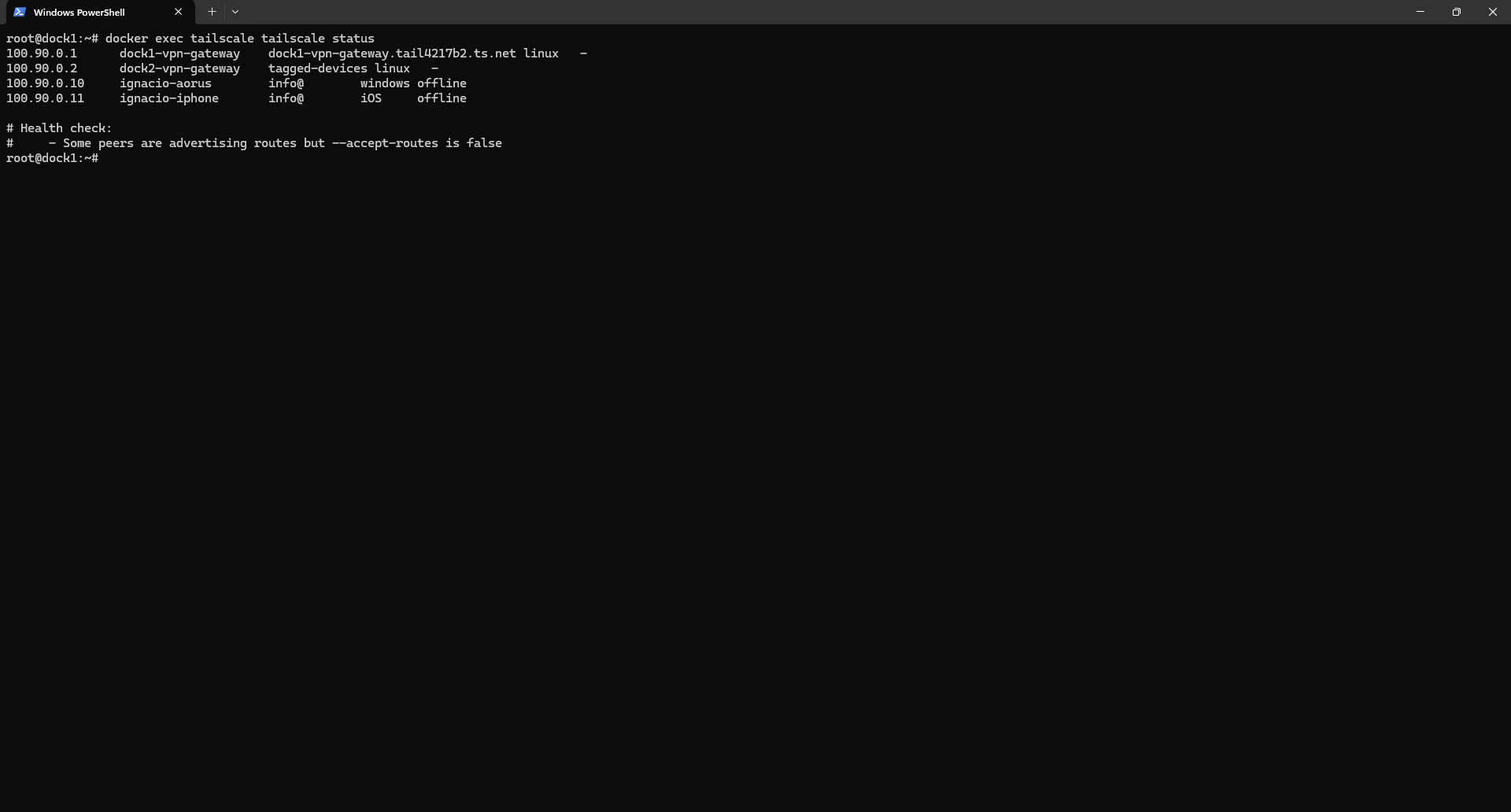

docker exec -it tailscale tailscale status
![tailscale status output](../assets/tailscale-status-cli.png)

Admin Panel Tips

Menu	Action	Purpose
Admin Panel	Enable Subnet Routes	Allow access to local lab networks
Machines	Check hostname	Confirm container is registered as `dock1`
Auth Keys	Create new key	Automate deployments

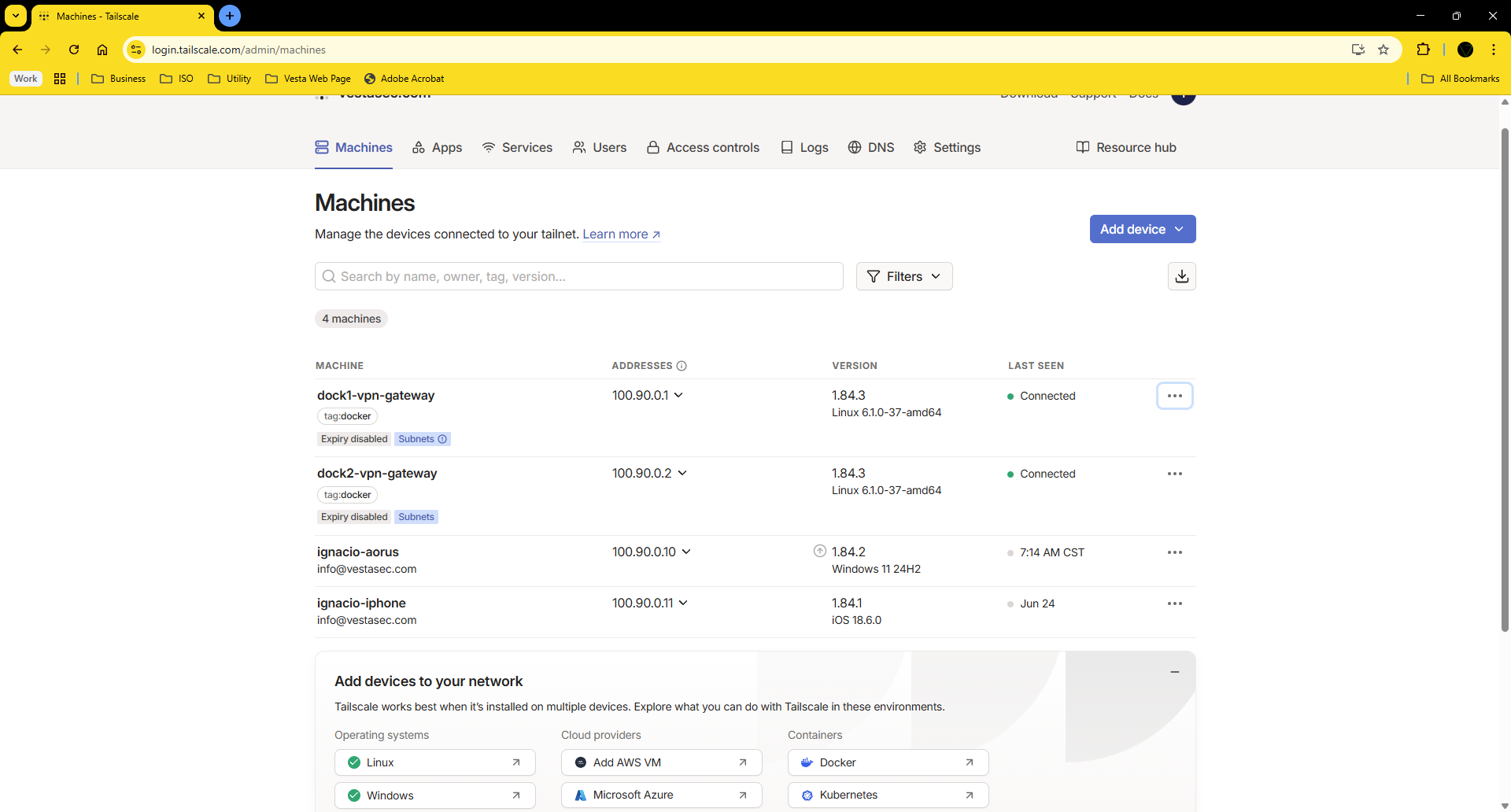

Tailscale admin panel

Validation and Tests

From another Tailscale node:

ping 100.x.x.x         # container IP
ping 10.10.0.10        # real LAN IP behind container

From inside the container:

ping 10.10.0.1
tailscale status

Common Issues

Issue	Solution
`No such container`	Ensure `docker-compose up` ran successfully
Node does not appear in the panel	Check if auth key is valid and preapproved
Subnet access not working	Approve routes in Admin Panel and enable IP forwarding
LAN ping fails	Ensure IP forwarding is enabled on host
