Tailscale Networking (Docker)
Introduction
This document explains how Tailscale integrates with the host network when running in a Docker container using network_mode: host, including ports used, NAT traversal behavior, and DNS handling.
Required Ports
| Port | Protocol | Purpose |
|---|---|---|
| 41641 | UDP | Primary WireGuard peer-to-peer traffic |
| 443 | TCP | Control connection to coordination server |
| 53 | UDP | DNS resolution if MagicDNS is enabled |
Note: Tailscale does not require incoming ports, but outbound UDP 41641 must be allowed.
NAT Traversal
Tailscale supports advanced NAT traversal techniques:
- UDP hole punching
- Fallback relaying via DERP servers
- Automatic IPv4/IPv6 detection
This allows connectivity from networks behind firewalls, double NAT, or LTE providers, without manual port forwarding.

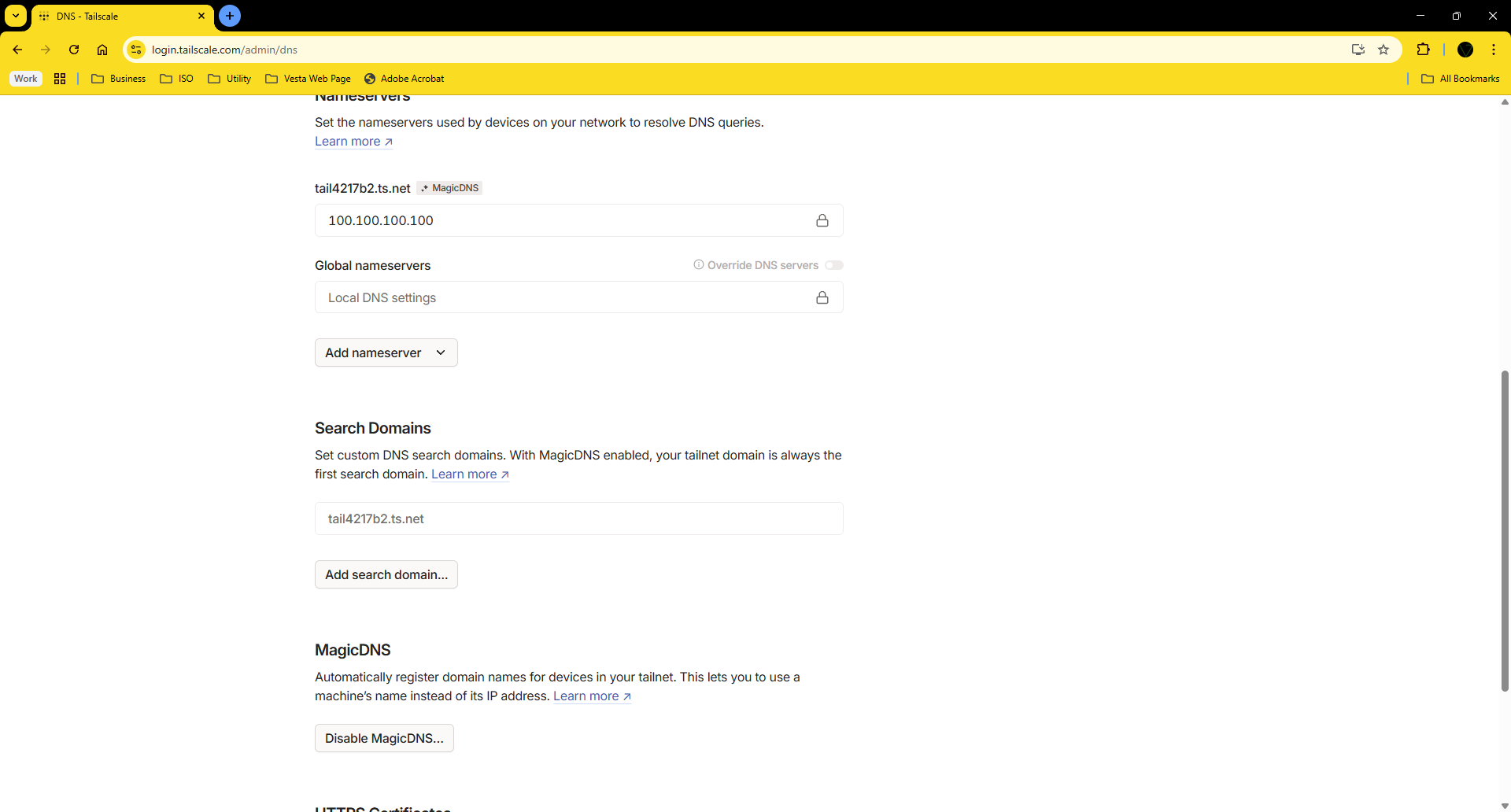

MagicDNS
Tailscale supports internal DNS resolution using the .ts.net domain. When MagicDNS is enabled:
- Nodes can resolve each other by name
- You don't need to memorize IPs like
100.x.x.x - DNS config is pushed from the control panel
Host Interfaces
Running with network_mode: host gives the container full access to host interfaces, including access to internal VLANs:
| Subnet | Interface | Suggested Purpose |
|---|---|---|
10.0.0.0/24 |
ether1 |
Primary network and internet gateway |
10.10.0.0/24 |
vlan10-mgmt |
Management: Proxmox, Ceph, MikroTik, monitoring |
10.20.0.0/24 |
vlan20-svc |
Internal services: containers, APIs, databases |
10.30.0.0/24 |
vlan30-stor |
Storage: TrueNAS, MinIO, Nextcloud |
10.40.0.0/24 |
vlan40-bak |
Backups and snapshots: PBS, Veeam, Restic, Borg |
10.50.0.0/24 |
vlan50-iot |
IoT devices: cameras, sensors, automation |
10.60.0.0/24 |
vlan60-dmz |
Public exposure: reverse proxies, VPN entrypoints |
10.70.0.0/24 |
vlan70-guest |
Guest Wi-Fi and isolated traffic |
Diagnostics
Run the following from inside the container:
tailscale netcheck
tailscale status
ping 10.10.0.1
Common Issues
| Issue | Solution |
|---|---|
| All traffic via DERP | Likely UDP blocked; check firewall/NAT |
| Can't resolve names | Enable MagicDNS in control panel |
| No subnet access | Verify subnet routes are approved |
