Permissions & ACL – core-pool datasets

Quick-view matrix

Dataset	Protocol	ACL type	Owner	Purpose
lab/	SMB	NFSv4	labuser	Windows / macOS lab share
agency/	SMB	NFSv4	agencyuser	Business share
lab/backups/pbs/	NFS	POSIX	root	Backup target for Proxmox Backup Server

---

POSIX vs NFSv4 ACL – when to pick which

Feature	POSIX ACL	NFSv4 ACL (Windows-style)
Best for	Linux / NFS	Windows / SMB (also macOS)
GUI management	Limited	Full in TrueNAS SCALE
Granularity	Basic (u/g/o)	Fine-grained (read / write / list, inheritance)

Rule of thumb
• SMB share ➜ NFSv4 ACL
• Pure NFS export ➜ POSIX ACL

---

Configure lab/ dataset (SMB + NFSv4)

Dataset path: /mnt/core-pool/lab

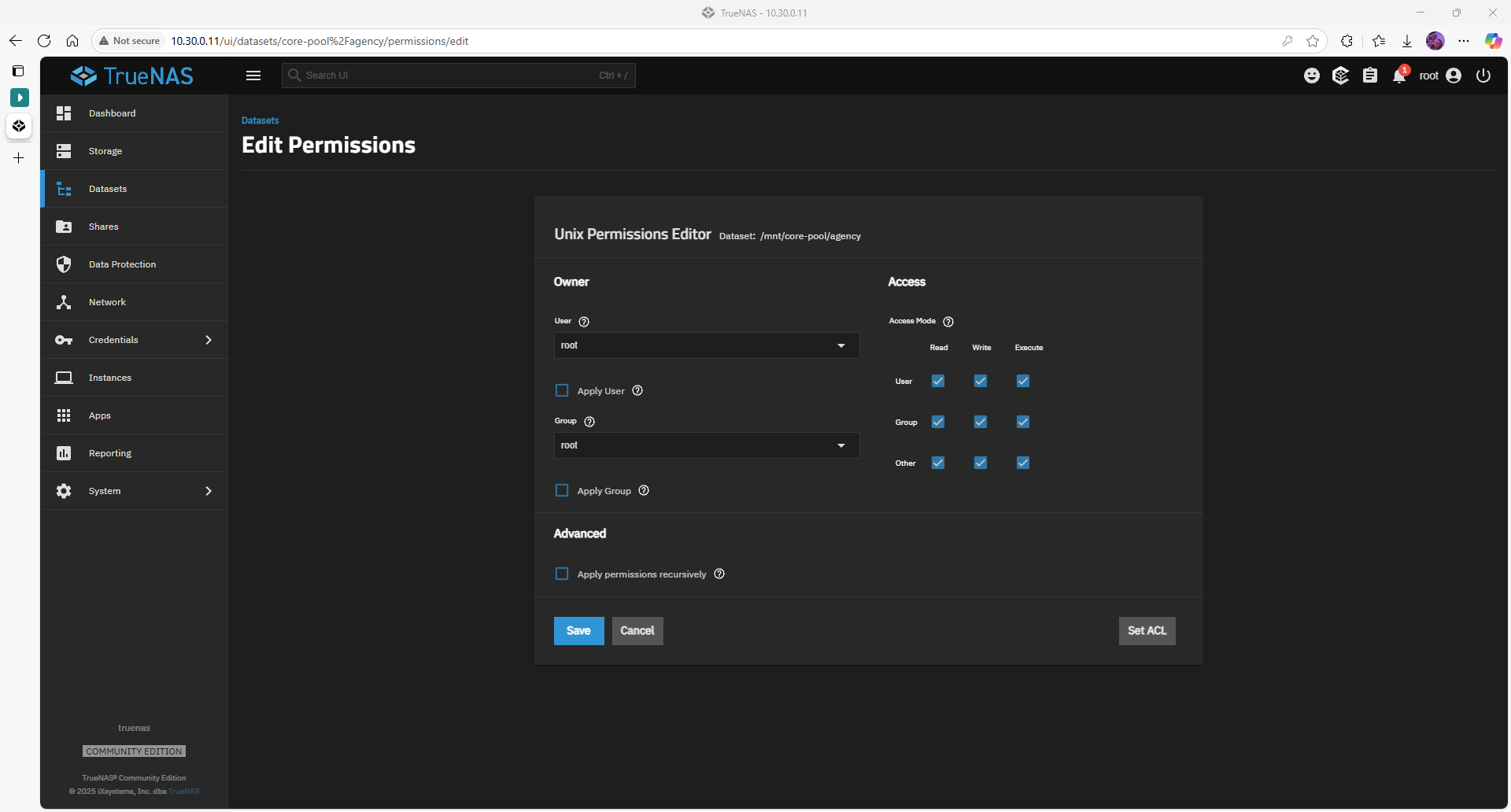

1. Datasets ▸ lab ▸ Edit
2. ACL Type → NFSv4
3. Apply recursively ✔
4. Set ownership
5. Owner User = labuser
6. Owner Group = labuser (optional)
7. ACL entries
8. labuser – Full control
9. root – Full control (safety)
10. Tighten or remove everyone@ as required

1. Test from Windows
   \\truenas\lab → prompt for labuser credentials → create / delete a file.

---

Configure lab/backups/pbs/ dataset (NFS + POSIX)

Dataset path: /mnt/core-pool/lab/backups/pbs

chown root:root /mnt/core-pool/lab/backups/pbs
chmod 770      /mnt/core-pool/lab/backups/pbs

Validation

nfs4xdr −p /mnt/core-pool/lab

Tips & gotchas

• Use GUI editor for NFSv4 ACLs – mixing chmod with NFSv4 trees can break inheritance.
• Restart the SMB service after large ACL changes for Windows clients to re-scan permissions.
• Snapshot tasks inherit ACLs automatically.
