SMB / NFS Shares – core-pool
Quick-view matrix
| Share name | Dataset path | Protocol | Access group | Purpose |
|---|---|---|---|---|
| root | /mnt/core-pool |
SMB | root |
Admin-level for all data |
| lab | /mnt/core-pool/lab |
SMB | labuser |
Lab services & repos |
| agency | /mnt/core-pool/agency |
SMB | agencyuser |
Business documents |
| lab-backup | /mnt/core-pool/lab/backups |
NFS | * (ro) |
Off-host backups |
Prerequisites
- SMB and NFS services installed (TrueNAS SCALE 24.04 enables both by default)
- Users created: labuser, agencyuser
labuserandagencyuserpasswords set- ACLs on corresponding datasets adjusted (see Permissions guide)
Step 1 – Enable and start SMB service
| Menu path | Action | Purpose |
|---|---|---|
| System › Services › SMB | Toggle Start automatically + click Start | Keeps SMB up on every boot |

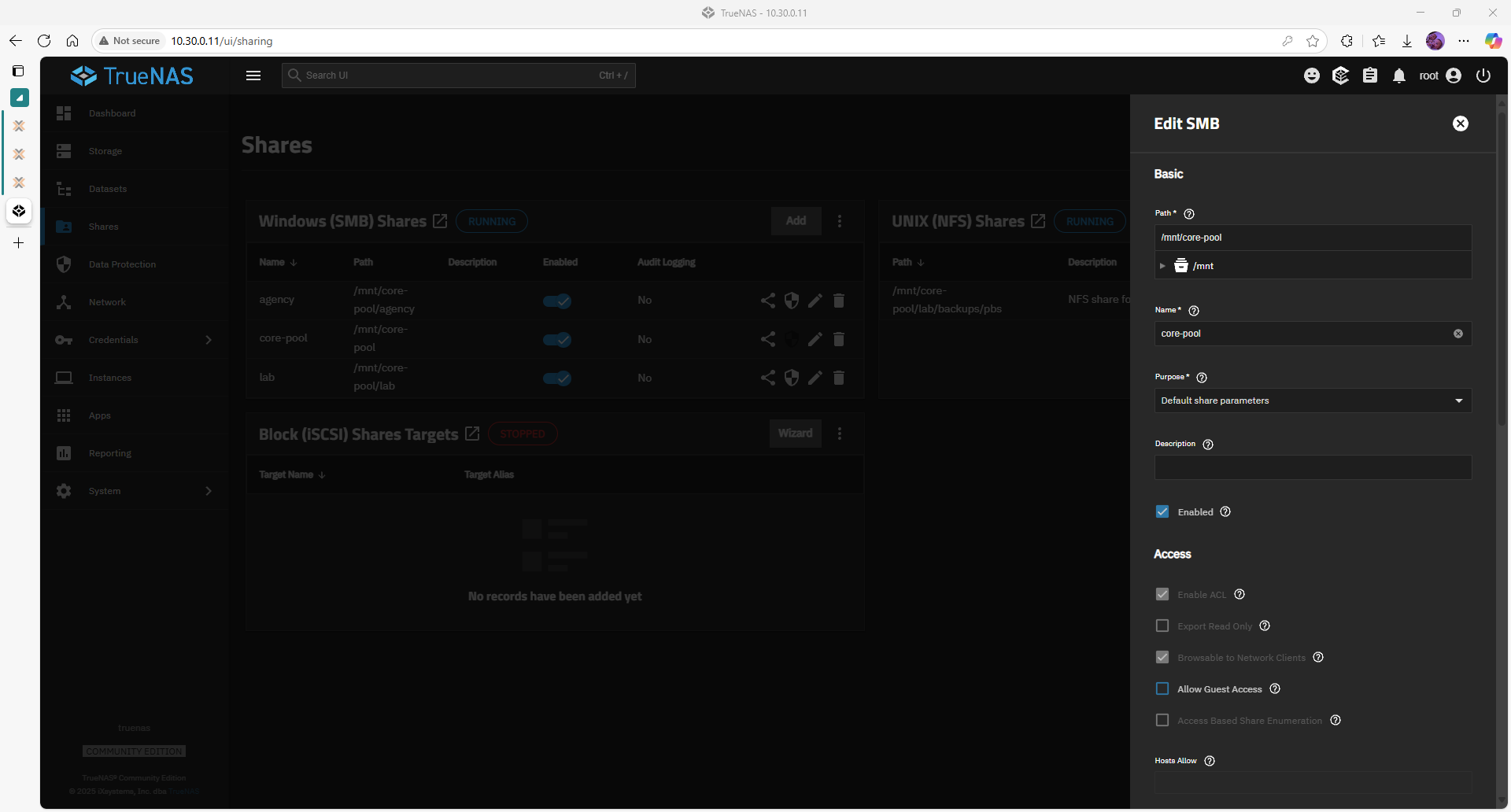

Step 2 – Create SMB shares (UI)
| Menu path | Field/value | Notes |
|---|---|---|
| Sharing › Windows (SMB) › Add | Path =/mnt/core-pool · Name =root |
Admin share |
Path =/mnt/core-pool/lab · Name =lab |
Lab share | |
Path =/mnt/core-pool/agency · Name =agency |
Business share |
Step 3 – Enable shares at ZFS level (CLI)
zfs set sharesmb=on core-pool/lab
zfs set sharesmb=on core-pool/agency
Step 4 – Create NFS export for backups
zfs set sharenfs=on core-pool/lab/backups

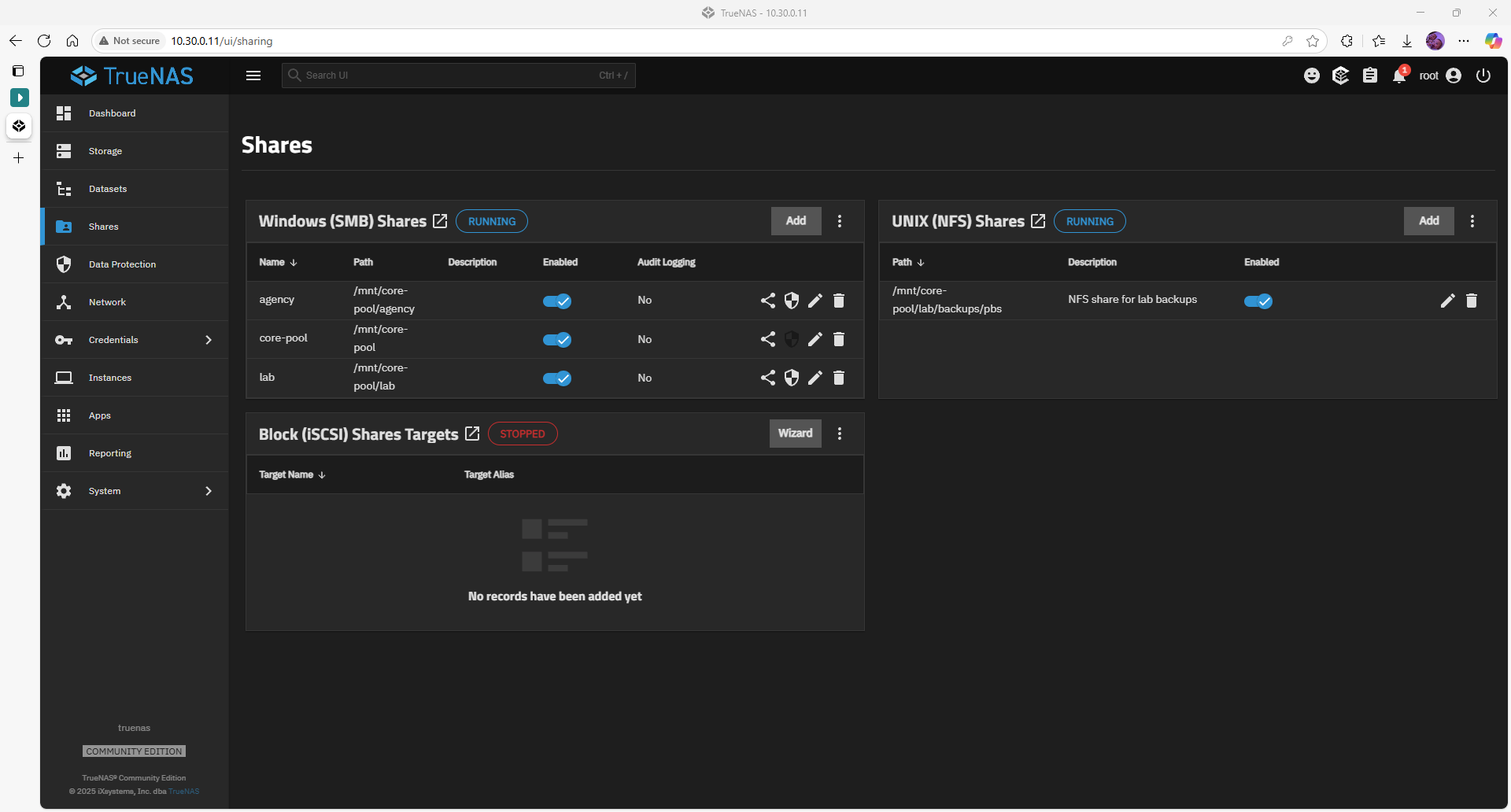

Validation
smbclient -L //truenas -U labuser
Windows › \truenas\agency
showmount -e truenas
