VLAN Networking – TrueNAS SCALE
Quick-view matrix
| VLAN | CIDR | Tagged interface | Role / Notes |
|---|---|---|---|
| 30 | 10.30.0.0/24 | vlan30 |
Storage traffic + Web UI |
| 40 | 10.40.0.0/24 | (future) | Backup / replication |
Prerequisites
- TrueNAS SCALE 24.04 freshly installed (no IP configured yet)
- at least one trunk port on the switch carrying VLAN 30 (and 40 later)
- Interface names in this guide:
enxe04c365168→ physical NIC (UP)enp0s25→ unused spare (DOWN)

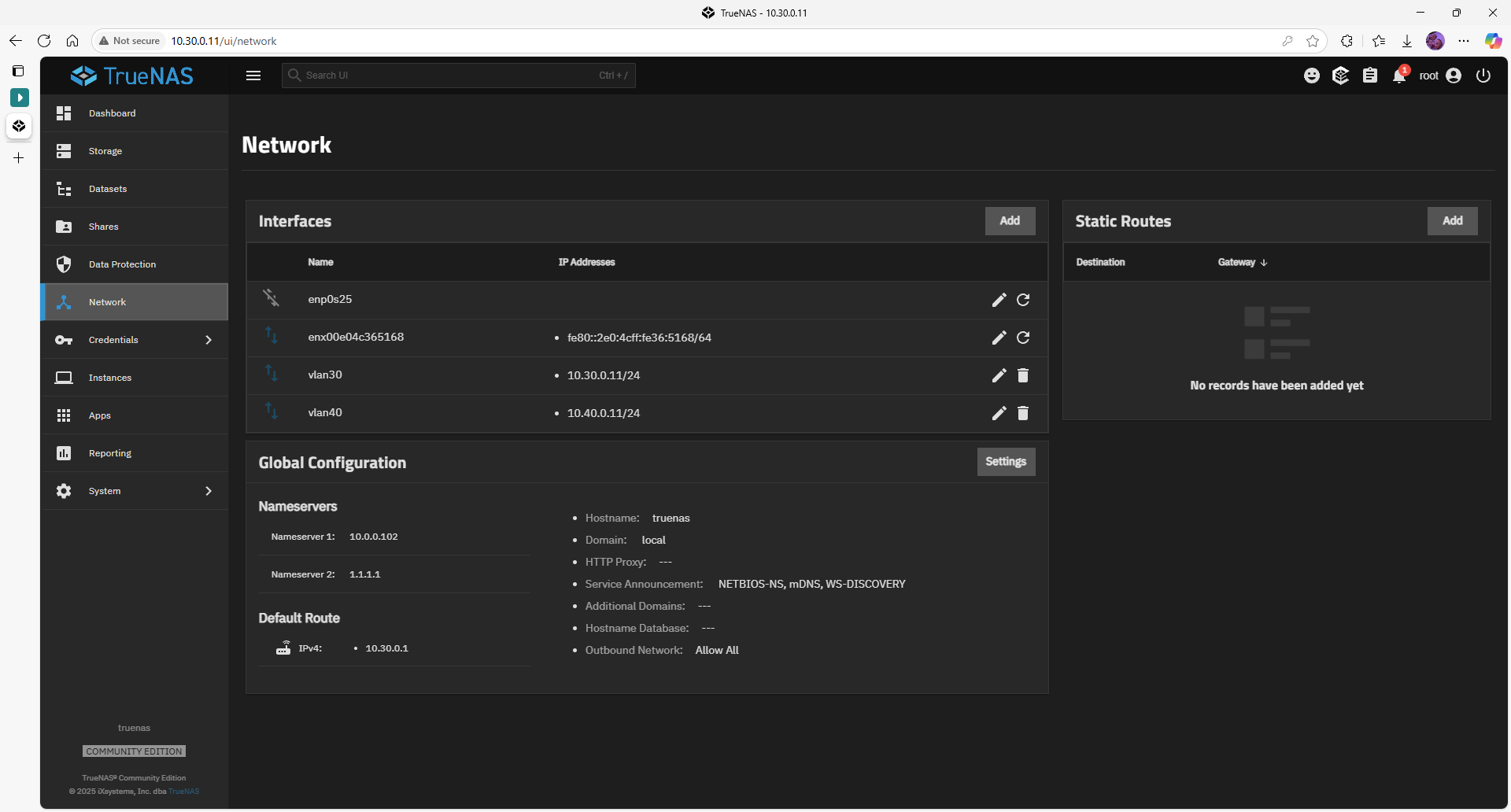

Step 1 – Create the VLAN interface (UI)
| Menu path | Action | Purpose |
|---|---|---|
| Network ▸ Interfaces ▸ Add | Select Parent = enxe04c365168 Type = VLAN ID = 30 Name = vlan30 |
Creates tagged interface |
| vlan30 ▸ Edit | Set IP Address = 10.30.0.11/24 | Mgmt & storage subnet |
Step 2 – Validation
ping -c3 10.30.0.1
ip -c addr show vlan30
